Man scissor lift is manned aerial work equipment, it makes originally dangerous high human work safety, simple, convenient and even some interesting, Scissor man lift has beautiful appearance and manipulation of the ergonomic design, not only greatly improve the safety and save a lot of labor time DFLIFT scissor man lift is from China professional the electric scissor lift platform manufacturers specifications lift have inventory can delivery at any time.
Rated Loading Capacity: 320kg 480kg
Min. Lifting Height: 800mm
Max. Lifting Height：16000mm
Power supply: battery or diesel electric
After-sales Service Provided: Field installation, commissioning and training
Platform: Anti-skid Checkered Plate
Voltage: 110V,220V,380V, customized

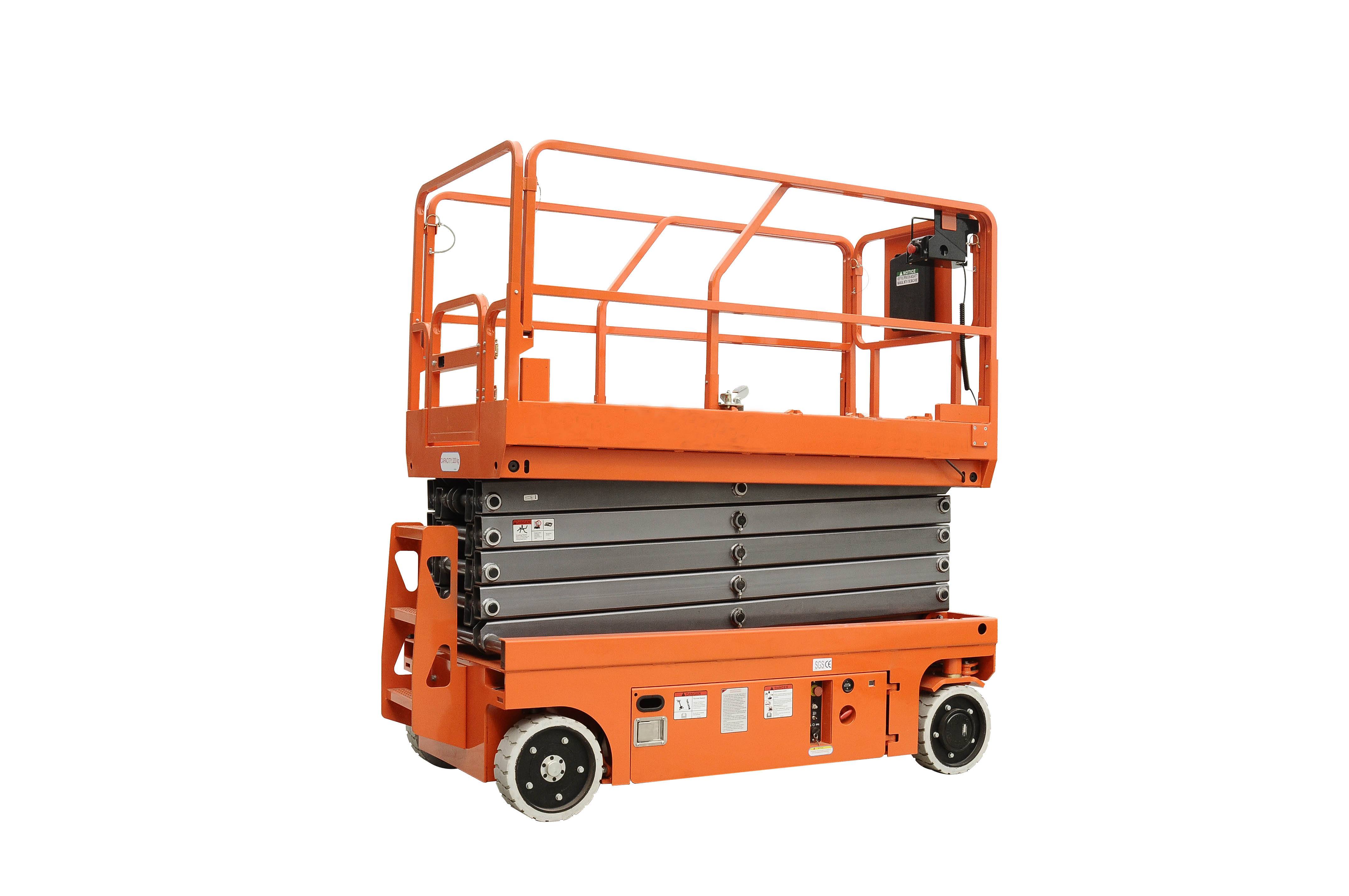

Scissor man lifts technical data
Tables
|
Data/Model |
DFPT-6HD |
DFPT-8HD |
DFPT-10HD |
DFPT-12HD |
|
Lifting height(mm) |
6000 |
8000 |
10000 |
11800 |
|
Max. working height(mm) |
8000 |
10000 |
12000 |
13800 |
|
Load capacity(kg) |
380 |
320 |
300 |
300 |
|
Guardrail height(mm) |
1100 |
1100 |
1100 |
1100 |
|
Extend platform capacity(kg) |
100 |
100 |
100 |
100 |
|
Platform size(mm) |
2700*810 |
2270*1120 |
2270*1120 |
2270*1120 |
|
Extend platform length(mm) |
870 |
900 |
900 |
870 |
|
Overall size(mm) |
2270*810*1850 |
2480*1160*2320 |
2480*1150*1920 |
2480*1160*2610 |
|
Grade ability |
25% |
25% |
25% |
25% |
|
Lift motor |
24V/3KW |
24V/3KW |
24V/3KW |
24V/4.5KW |
|
Drive speed(stowed) |
3.5km/h |
3.5km/h |
3.5km/h |
3.5km/h |
|
Drive speed(raised) |
0.8km/h |
0.8km/h |
0.8km/h |
0.8km/h |
|
Maintenance-free Battery V/Ah |
4*6/450 |
4*6/450 |
4*6/450 |
4*6/450 |
|
Self Weight(kg) |
2000 |
2100 |
2500 |
3000 |

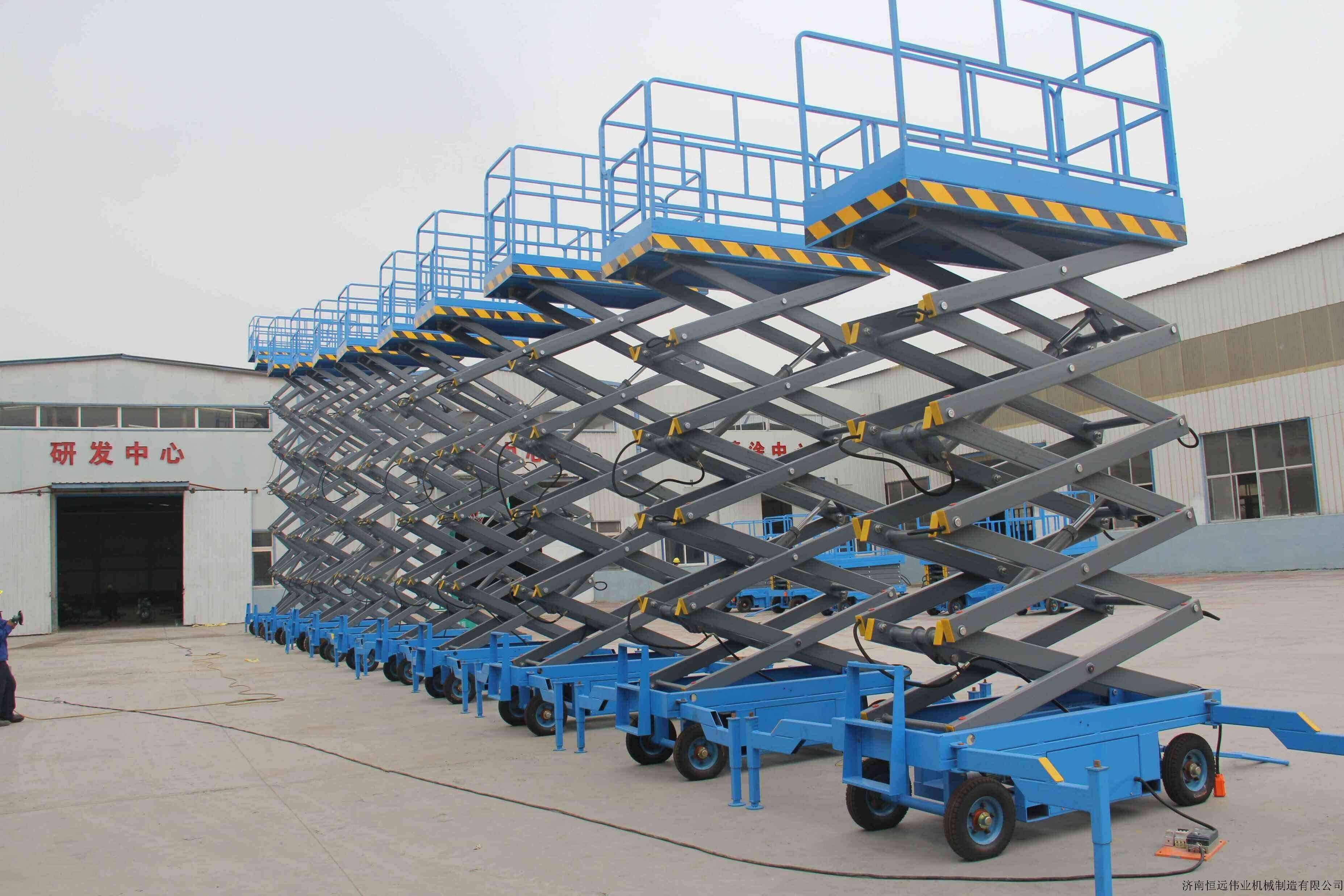

Mobile scissor man lift
Load capacity: 300kg-2000kg
Max. Lifting Height：18m
Lifting speed: 4-6m/min
Power: AC&DC choice
Electric hydraulic model
Mobile scissor man lift Specifications:
|
Mobile scissor man lift |
Platform size(mm) |
Load (kg) |
Height(m) |
Overall size (mm) |
Weight (kg) |
|
SJY0.3-4 |
2100*830 |
300 |
4 |
2250*950*1100 |
800 |
|
SJY0.3-6 |
2100*830 |
300 |
6 |
2250*950*1200 |
880 |
|
SJY0.3-7 |
2100*830 |
300 |
7 |
2250*950*1280 |
970 |
|
SJY0.3-8 |
2100*930 |
300 |
8 |
2250*1060*1380 |
1050 |
|
SJY0.3-9 |
2100*930 |
300 |
9 |
2250*1060*1500 |
1165 |
|
SJY0.3-10 |
2100*1230 |
300 |
10 |
2250*1350*1530 |
1360 |
|
SJY0.3-11 |
2100*1230 |
300 |
11 |
2250*1350*1650 |
1400 |
|
SJY0.3-12 |
2550*1530 |
300 |
12 |
2720*1670*1750 |
2260 |
|
SJY0.3-14 |
2812*1530 |
300 |
14 |
3045*1730*1810 |
2400 |
|
SJY0.3-16 |
2812*1600 |
300 |
16 |
3045*1800*2080 |
3500 |
|
SJY0.3-18 |
3070*1600 |
300 |
18 |
3250*1800*2080 |
3900 |
Scissor man lift manufacturer:
Please tell us your scissor man lift specific requirements, and we will offer you the following price:
- What working height do you need?
- How many do you want to buy?
If you have any questions, please feel free to contact us.
Scissor man lifts range of application:
The mobile scissor lifting platform is suitable to be in the sites, factories, warehouses ,grain depot , station , hotels , airports , docks ,sports , overhead pipeline and other high-altitude equipment installation and maintenance , cleaning , etc. ,
The mobile scissor lifting platform is also used in lifting equipment maintenance, outdoor electric power facilities maintenance, steel structure factory building maintenance, etc.
Scissor man lift for sales:
Our DFLIFT Service
1) We can design the customized Hydraulic Scissor Lifting platform as per your requirement.
2) Shoot test video for you before delivery.
3) One year warranty, warranty period product quality reasons free replacement, warranty period accessories according to the dealer price, lifetime technical support
4) English manual for machine installation using and maintenance will be send together with the goods.
5) We will send you parts for free if there are any non-human factors faults during warranty time.
6) Supply 24-hours technical assistance by email, telephone or other video online.
7) Engineers are available to your country if necessary.
