Scissor lift trolley is small lifting machinery, mainly used for small range of lifting, article extraction and put, also used for carrying small valuables. The product appearance is generous and beautiful, the structure is firm, stable and safe and reliable, the intrinsic performance and the service life has reached the same equipment advanced level. At present, the mainstream of the market is hydraulic driven lifting, because of the small size, scissor lift table trolley easy to move widely used in logistics transportation, warehouse management, library, supermarket, and ordinary small equipment manufacturing.
Manual scissor lift trolley parameter
Capacity:
150-3000KG
Lift Drive / Actuation: Hydraulic
Min. Lifting Height: 350mm
Hydraulic: Foot-type hydraulic
Product Type: Mini scissor lift table
Scissor lift trolley specification
Tables
|
Model |
HW-150 |
HW-300 |
HW-500 |
HW-750 |
HW-300D |
|
Name |
Hydraulic Scissor lift table |
Double hydraulic Scissor lift table |
|||
|
load-bearing(kg) |
150 |
300 |
500 |
750 |
300 |
|
Overall dimensions(mm) |
900*450*900 |
1050*520*900 |
1120*520*900 |
1120*520*900 |
1050*520*900 |
|
Platform size(mm) |
708*450 |
820*520 |
820*520 |
820*520 |
820*520 |
|
Min height(mm) |
225 |
240 |
260 |
280 |
360 |
|
Max height(mm) |
700 |
750 |
780 |
780 |
1220 |
|
Wheel size(mm) |
Φ100*w30 |
||||
|
package size(mm) |
810*490*250 |
920*590*250 |
920*560*300 |
920*590*300 |
920*570*380 |
|
Weight(kg) |
49 |
66 |
75 |
75 |
103 |

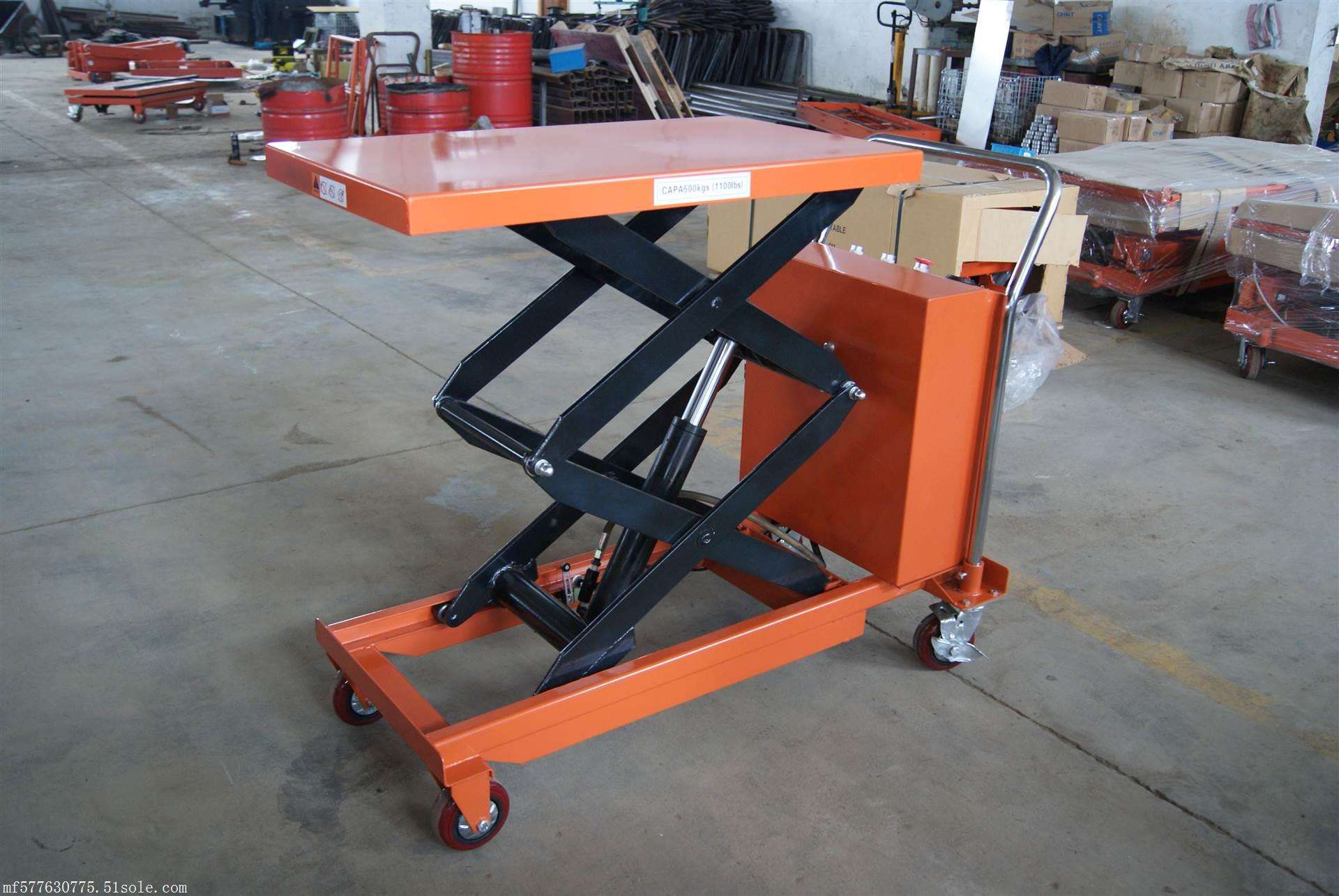

Electric scissor lift trolley：
Electric scissor lift trolley compared with manual scissor lift table added battery module, which can work continuously for 10 hours when fully charged. Its lift is battery-driven hydraulic pump, and it saves time and energy compared with the hydraulic pump on foot. If the heavy load is inconvenient for manual pushing, you can also add auxiliary walking device to make the work more relaxed. DFLIFT always serves you.
Rated Loading Capacity：150kg-2000kg
Max. Lifting Height：700-2000mm
Lifting mechanism: Electric motor
Lift Drive / Actuation: Hydraulic
Specification of Scissor Lift Table Trolley
|
Model |
DP30 |
DP50 |
DP35 |
|
Loading capacity (kg) |
300 |
500 |
350 |
|
Min. lifting height (mm) |
280 |
280 |
280 |
|
Max. lifting height (mm) |
900 |
900 |
1300 |
|
Table size (mm) |
950*500*50 |
950*500*50 |
950*500*50 |
|
Wheel size (mm) |
125 |
125 |
125 |
|
Voltage (V) |
12 |
12 |
12 |
|
Power (kw) |
800 |
800 |
800 |
|
Battery (ah) |
65 |
65 |
65 |
|
Input voltage (V) |
220/110 |
220/110 |
220/110 |
|
Net weight (kg) |
110 |
140 |
120 |
Roller table scissor lift trolley
Roller table scissor lift trolley parameter
Capacity: 150-3000KG
Lift Drive / Actuation: Hydraulic
MAX. Lifting Height: 700-2000mm
Hydraulic: Foot-type hydraulic
Product Type: Mini scissor lift table
Stainless steel/aluminum alloy scissor lift table trolley
Stainless steel/aluminum alloy scissor lift table trolley parameter
Capacity: 150-1000KG
Lift Drive / Actuation: Hydraulic
Max. Lifting Height: 700-2000mm
Hydraulic: Foot-type hydraulic
Product Type:Mini scissor lift table
- The products of scissor lift table trolley are made from aluminum alloy or stainless steel;
- Stainless steel/aluminum alloy scissor lift table trolley overall appearance of the product is beautiful and light.
Why choose DFLIFT Scissor lift?
Rich experience: We have more than 20 years' experience in hydraulic scissor lift. That means, we can preview the problems for the orders and products. Therefore, it will make sure to reduce the risk of bad situation to happen.
Point to point service: There is one sale representative who will serve you from inquiry to products shipped out. During the process, you just need to discuss with her for all problems and the way saves much time.
Strict QC: For each scissor lift table trolley order, strict inspection will be carried out by the QC department before shipping. The bad quality will be avoided within door.
