300kg (660 lbs.) scissor lift for sale
Scissor lift 300kg (660 LBS) is the most common specification of lifting platform, mainly including 300kg mobile scissor lift table, 300kg aerial work scissor lift, and automatic scissor lift. DFHLIT is a professional scissor lift manufacturer from Henan, China; we have the best quality and best price. Welcome to consult.

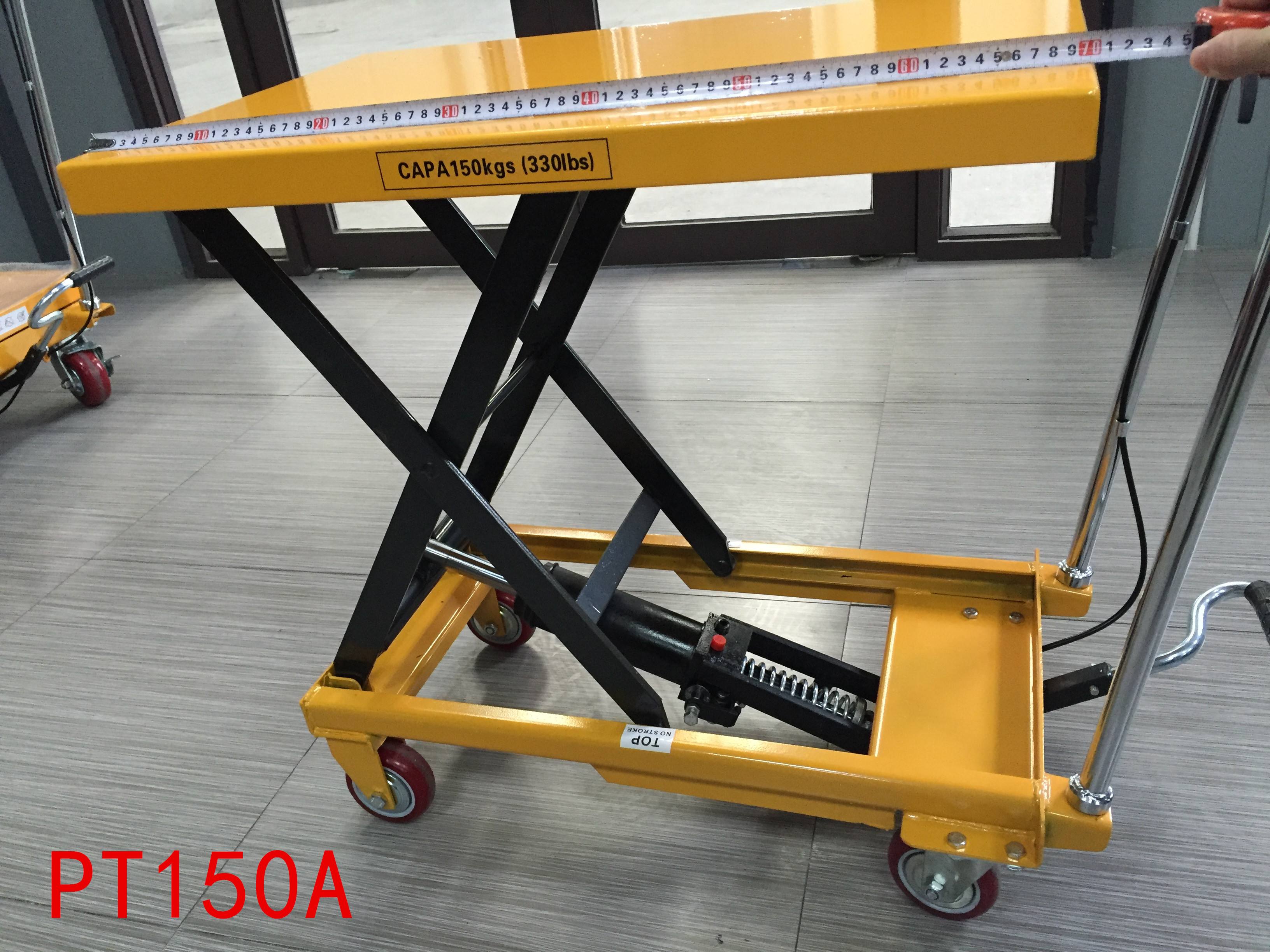

300kg mobile scissor lift table price
300kg mobile scissor lift table, this kind of scissor lift is small, easy operated and convenient to use. It can be operated by stepping on the pedal and pressing the button to lower the platform's own weight, which is very easy to operate. 300kg mobile scissor lift table he can also increase the battery, by lifting up and down button control hydraulic pump to achieve the platform lift, mobile scissor lift table can be customized, can add guardrail, roller and hollow. It is the best equipment for handling in the workshop
Kindly confirm your load capacity, platform size and lift height and working area, we will recommend the best suitable one for you.
Rated Loading Capacity: 300kg
Max. Lifting Height: 950/1600mm
Caster type: Pu
Power: manual hydraulic
Tables
| Main specifications | |||
| Model | PE-300-TA | PE-300-TB | |
| capacity | kg | 300 | 300 |
| table size | mm | 1100 x 600 | 1100x 600 |
| raised height | mm | 950 | 1600 |
| lowered height | mm | 390 | 460 |
| caster size – rear / front | mm | 150 / 180 | 150 / 180 |
| battery power | V/Ah | 24 / 80 | 24 / 80 |
| lift motor | kW | 0.8 | 0.8 |
| net weight | kg | 170 | 196 |

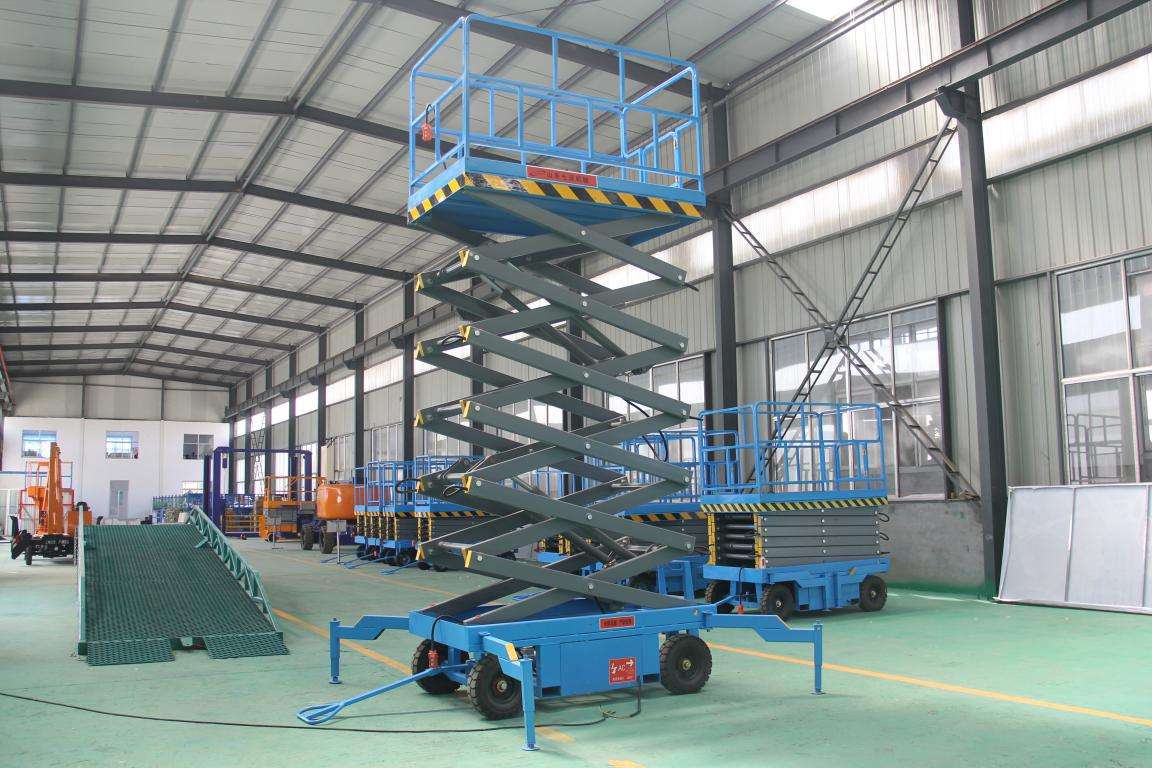

300kg (660 lbs.) mobile scissor lift platform
300kg (660 lbs.) mobile electric scissor lift with AC DC power is mainly used to lift workers to high place for repairs, maintenance, cleaning or installation and so on. You can move it easily to the right working area. The Mobile Scissor Lift can be also equipped with battery. With the battery, you don't need to connect AC power, and you can let the mobile scissor lift at some work areas without power. Also, this type of mobile scissor lift can be installed with the driven wheel to move it by hands without any hardness.
Rated Loading Capacity: 300kg
Max. Lifting Height: 18m
Voltage: 110v 220v 240v 380v Optional
Power: electro-hydraulic
300kg (660 lbs.)Mobile electric scissor lift specifications
| Model | Capacity(kg) | Max. Height(mm) | Min. Height(mm) | Platform size(mm) | Lifting time(s) | Motor power(kw) | Weight(kg) |
| SJY0.5-3 | 500 | 3000 | 850 | 1300x700 | 16 | 0.75 | 400 |
| SJY0.5-5 | 500 | 5000 | 950 | 1300x700 | 43 | 0.75 | 620 |
| SJY0.3-6 | 300 | 6000 | 950 | 1850x880 | 49 | 0.75 | 650 |
| SJY0.5-6 | 500 | 6000 | 950 | 1850x880 | 54 | 1.1 | 650 |
| SJY0.3-7.5 | 300 | 7500 | 1250 | 1850x1000 | 65 | 1.5 | 900 |
| SJY0.5-7.5 | 500 | 7500 | 1350 | 1800x1000 | 72 | 1.5 | 1100 |
| SJY0.3-9 | 300 | 9000 | 1500 | 1850x1000 | 75 | 1.1 | 1200 |
| SJY0.5-9 | 500 | 9000 | 1600 | 1800x1000 | 80 | 1.5 | 1260 |
| SJY0.3-11 | 300 | 11000 | 1600 | 2100x1150 | 83 | 2.2 | 1320 |
| SJY0.5-11 | 500 | 11000 | 1600 | 2100x1150 | 88 | 2.2 | 1380 |
| SJY0.3-12 | 300 | 12000 | 1600 | 2450x1350 | 85 | 2.2 | 1700 |
| SJY0.5-12 | 500 | 12000 | 1800 | 2450x1350 | 90 | 3 | 1850 |
| SJY0.3-14 | 300 | 14000 | 1800 | 2450x1350 | 98 | 3 | 2200 |
| SJY0.5-14 | 500 | 14000 | 1980 | 2450x1350 | 120 | 3 | 2500 |
| SJY0.3-16 | 300 | 16000 | 1980 | 2500x1500 | 130 | 3 | 26 |

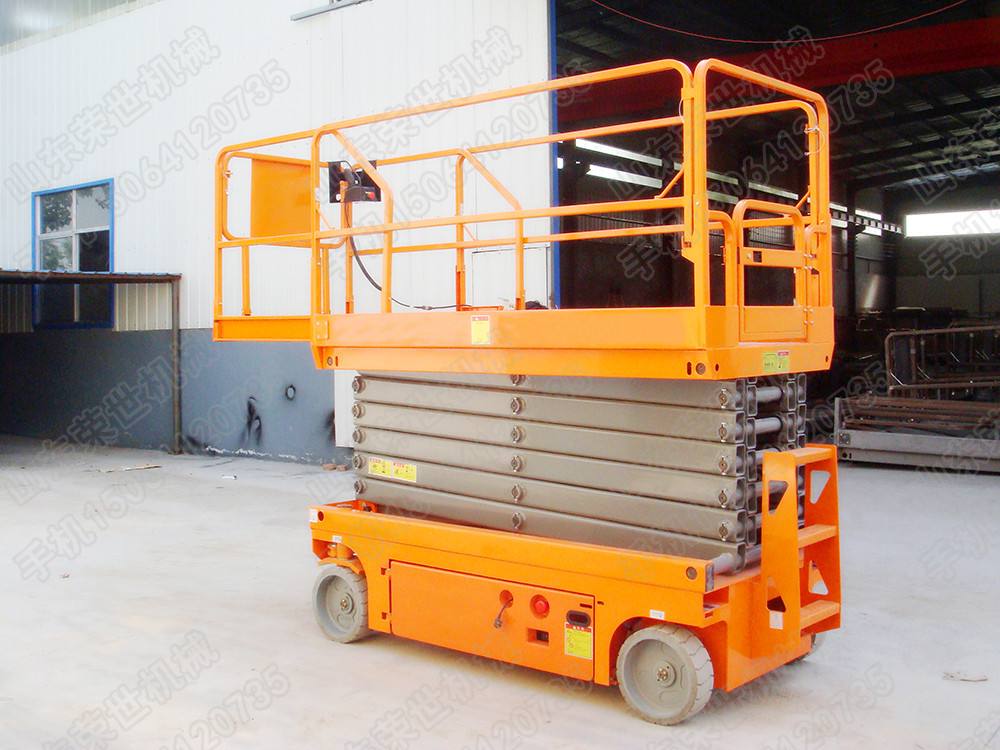

300kg (660 lbs.) automatic scissor lift price
300kg self-propelled lifting platform has the characteristics of transportation boundary and smooth operation. 300kg self-propelled scissor lift table can be telescopic, with a larger operating space, automatic pit protection system, widening the wheelbase design; in the uneven ground can also be free to move. Self-propelled lifting platform is widely used in municipal, garden, industrial, factory and other occasions. It is the most practical and extensive equipment for working at height.
Rated Loading Capacity: 320kg/450kg
Max. Lifting Height: 14m
Travel Speed: 0.8-3.2km/h
Power: 4x12(300)V/(Ah) electro-hydraulic
Product Model for 300kg (660 lbs.) self-propelled scissor lift
| Model | Platform size | Lift capacity | Height | Overall size(mm) | Self-weight(kg) |
| SJYZ06A | 2260*810mm | 380kg | 6m | 2475*810*2158 | 1850kg |
| SJYZ06 | 2260*1130mm | 550kg | 6m | 2475*1150*2158 | 2060kg |
| SJYZ08A | 2260*810mm | 320kg | 8m | 2475*810*2286 | 1980kg |
| SJYZ08 | 2106*930mm | 450kg | 8m | 2260*1130*1100 | 2190kg |
| SJYZ10 | 2260*1130 | 320kg | 10m | 2475*1150*1964 | 2430kg |
| SJYZ12 | 2260*1130 | 320kg | 12m | 2475*1150*2542 | 2960kg |

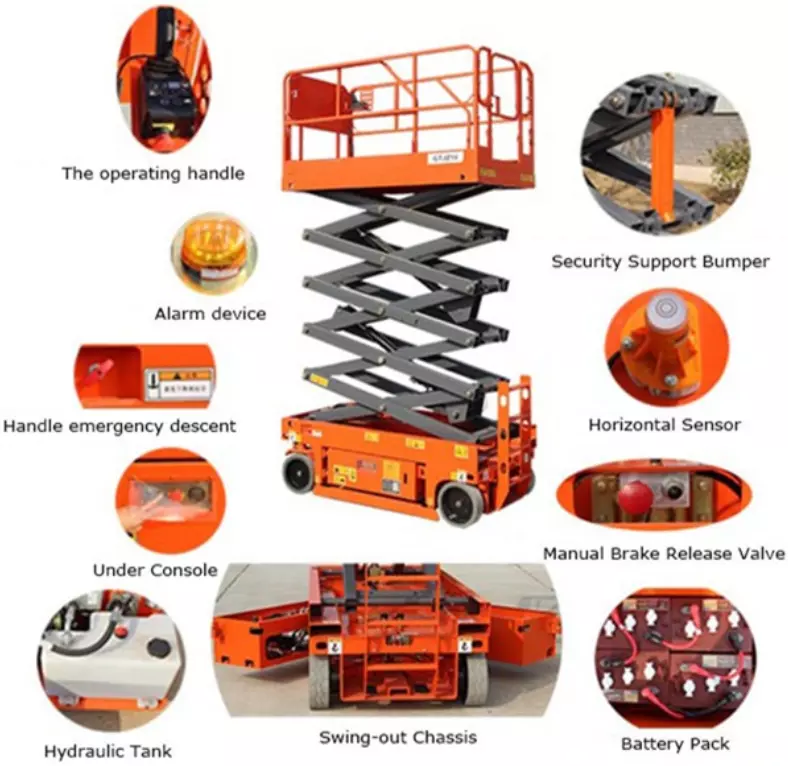

300kg (660 lbs.) self-propelled scissor lift design advantage
Features of 300kg scissors aerial work platform:
High strength lifting mechanism
Use manganese steel rectangular tube
Lift overload: provides safety measures to prevent hydraulic pipe rupture
Protective valve: emergency descending device in case of power failure
