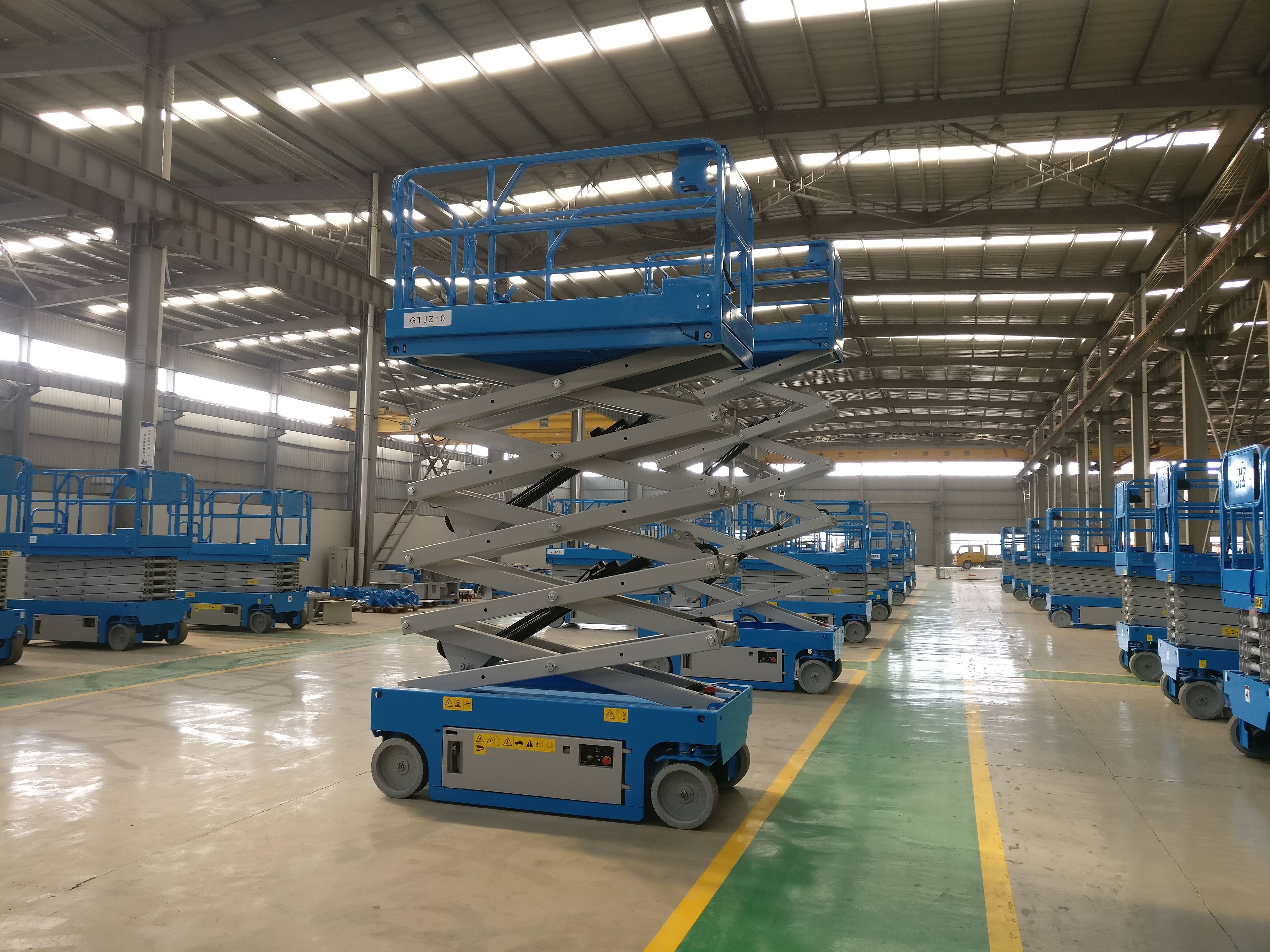

19 foot (5.8 meter) scissor lift is the best-selling device in the mobile scissor lift. It can be divided into two types: towed and self-propelled. The lifting is driven by a hydraulic cylinder. The power can be selected from batteries, single-phase or three-phase. It is often seen in factories and outdoors. DFLIFT is 19 foot (5.8 meter) scissor. Lift Professional manufacturer, our equipment warranty for 2 years, lifetime maintenance.
19 foot (5.8 meter) scissor lift for sale:
19 foot scissor lift parameter:
Rated Loading Capacity: 320kg 480kg
Max. Lifting Height: 19 foot (5.8 meter)
Lift Drive / Actuation:
Hydraulic electric
After-sales Service Provided: Field installation, commissioning and training
Platform:
Anti-skid Checkered Plate
Voltage:
110V, 220V, 380V, customized
19 foot mobile scissor lift：
Rated load: 300kg 500kg 1000kg 2000kg
Lifting height：3m 6m 8m 10m 12m 14m 16m 18m 20m
Walking mode: hand pull or assist walking
Power supply: ac, battery, diesel, manual
Type: Electric Hydraulic
19 foot mobile scissor lift detailed specification:
Tables
|
Model |
Platform Dimension (mm) |
Load (Kg) |
Lifting height (m) |
Overall dimensions (mm) |
Overall weight (Kg) |
|
|
QYCY0.5-6 |
2100*830 |
500 |
6 |
2250*950*1200 |
880 |
|
|
QYCY0.5-7 |
2100*830 |
500 |
7 |
2250*950*1280 |
970 |
|
|
QYCY0.5-8 |
2100*930 |
500 |
8 |
2250*1060*1380 |
1050 |
|
|
QYCY0.5-9 |
2100*930 |
500 |
9 |
2250*1060*1500 |
1165 |
|
|
QYCY0.5-10 |
2100*1230 |
500 |
10 |
2250*1350*1530 |
1360 |
|
|
QYCY0.5-11 |
2100*1230 |
500 |
11 |
2250*1350*1650 |
1400 |
|
|
QYCY0.5-12 |
2550*1530 |
500 |
12 |
2796*1670*1750 |
2260 |
|
|
QYCY0.5-14 |
2812*1530 |
500 |
14 |
3067*1730*1810 |
2486 |
|
|
QYCY0.5-20 |
3500*1800 |
500 |
20 |
4000*2300*2400 |
5500 |
|
|
QYCY0.3-16 |
2812*1600 |
300 |
16 |
3067*1810*2080 |
3063 |
|
|
QYCY0.3-18 |
3070*1600 |
300 |
18 |
3321*1810*2080 |
3900 |
|
|
QYCY1.0-4 |
2100*1200 |
1000 |
4 |
2250*1350*1180 |
1250 |
|
|
QYCY1.0-6 |
2100*1200 |
1000 |
6 |
2250*1350*1300 |
1400 |
|
|
QYCY1.0-8 |
2100*1200 |
1000 |
8 |
2250*1350*1420 |
1585 |
|
|
QYCY1.0-10 |
2100*1200 |
1000 |
10 |
2250*1350*1530 |
1700 |
|
|
QYCY1.0-12 |
2550*1530 |
1000 |
12 |
2796*1670*1750 |
2560 |
|
|
QYCY1.0-14 |
2812*1600 |
1000 |
14 |
3067*1810*1900 |
3230 |
|
|
QYCY1.5-6 |
2100*1530 |
1500 |
6 |
2250*1750*1530 |
1780 |
|
|
QYCY1.5-8 |
2100*1530 |
1500 |
8 |
2250*1750*1690 |
2070 |
|
|
QYCY1.5-10 |
2100*1530 |
1500 |
10 |
2250*1750*1850 |
2250 |
|
|
QYCY1.5-12 |
2550*1530 |
1500 |
12 |
2796*1762*1850 |
2900 |
|
|
QYCY1.5-14 |
2816*1600 |
1500 |
14 |
3045*1852*1960 |
3400 |
|
|
QYCY2.0-6 |
2100*1530 |
2000 |
6 |
2250*1750*1530 |
1780 |
|
|
QYCY2.0-8 |
2100*1530 |
2000 |
8 |
2250*1750*1690 |
2070 |
|
|
QYCY2.0-10 |
2100*1530 |
2000 |
10 |
2250*1750*1850 |
2250 |
|
|
QYCY2.0-12 |
2550*1600 |
2000 |
12 |
2796*1852*1954 |
3200 |
|
|
QYCY2.0-14 |
2816*1600 |
2000 |
14 |
3067*1852*2230 |
3900 |
19 foot mobile scissor lift product safety:
- In special circumstance, the scissor lift will use explosion-proof electric equipment
- The scissor platform is equipped with anti-skid plate to prevent slipping, it is enough safe when works on the platform.
- The 19 foot mobile scissor lift has hydraulic overload protective organization to ensure that equipment will not lift when the load beyond its rated load capacity.
- The 19 foot mobile scissor lift is equipped single control solenoid valves to prevent the platform dropping
- If power failure, you can open the manual dropped valve to lower the platform to the home position.
