1 meter scissor lift：
1 meter scissor lift means that the lifting stroke of the lifting platform is 1m. The 1m lifting platform can be divided into two types of hand push type fixed type. The driving forms are manual hydraulic and electro-hydraulic. It is common equipment for lifting and transferring goods in the workshop.

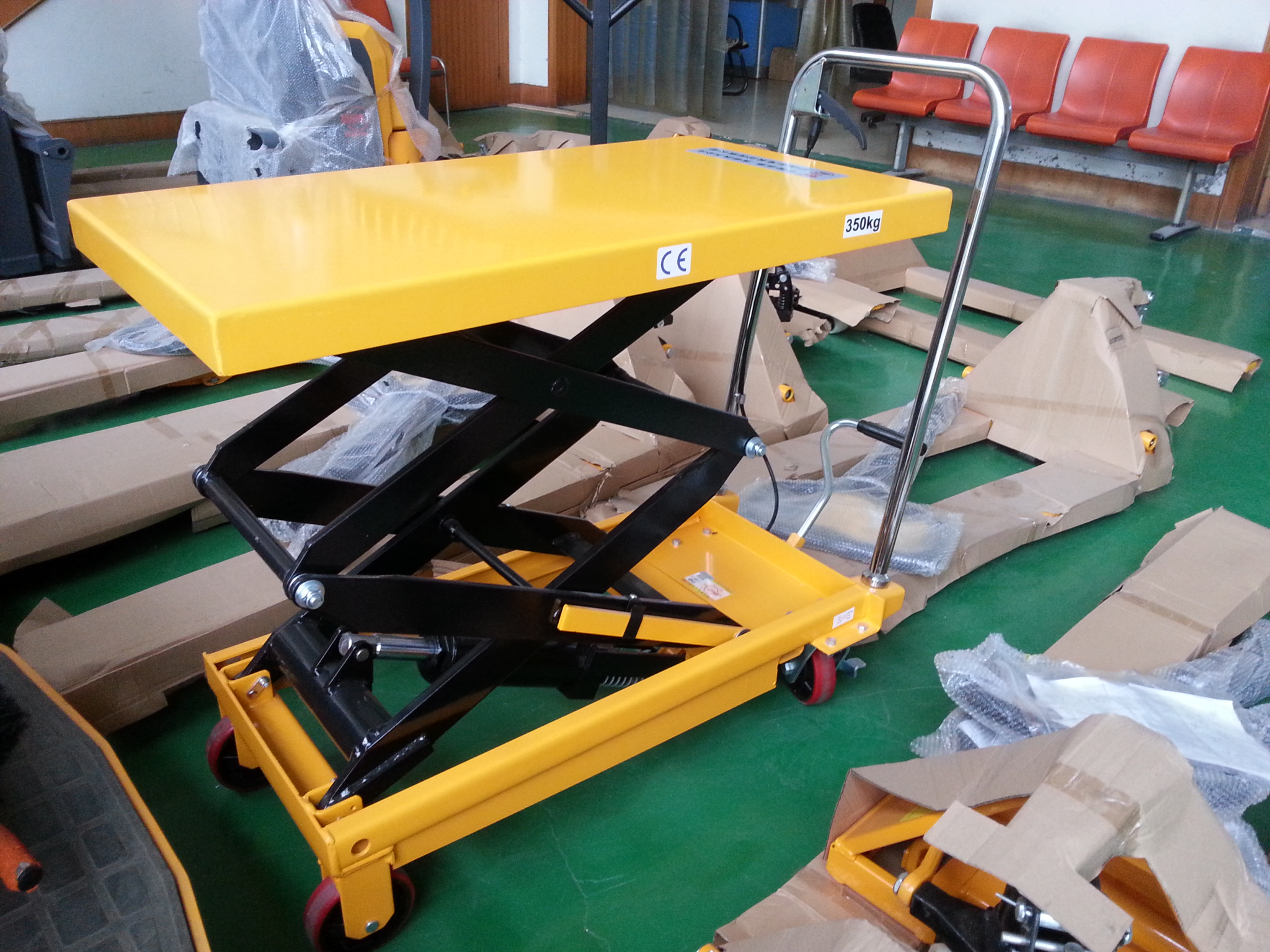

1 meter scissor lift trolley：
1 meter scissor lift trolley parameter：
Rated Loading Capacity：100kg-2000kg
Max. Lifting Height：1000mm
Power: Manual Hydraulic or battery
Walking: hand push/assist walking
Certification:
CE, SGS, ISO9001 Lift Table
Color: Yellow or customer specified
1 meter scissor lift trolley design parameters：
|
Model |
Capacity (kg) |
Table Size (mm) |
Table Height (Min./Max. mm) |
Wheel Dia. (mm) |
Package Size (mm) |
Net Weight (kg) |
|
CPTD500 |
500 |
905*550 |
360/1500 |
125 (5") |
1020*520*360 |
110 |
|
CPTD800 |
800 |
1200*610 |
450/1500 |
125 (5") |
1380*610*460 |
150 |
|
CPTD1000 |
1000 |
1200*610 |
500/1700 |
150 (6") |
1370*610*500 |
225 |
|
CPTD1500 |
1500 |
1200*610 |
500/1700 |
150 (6") |
1370*610*500 |
225 |

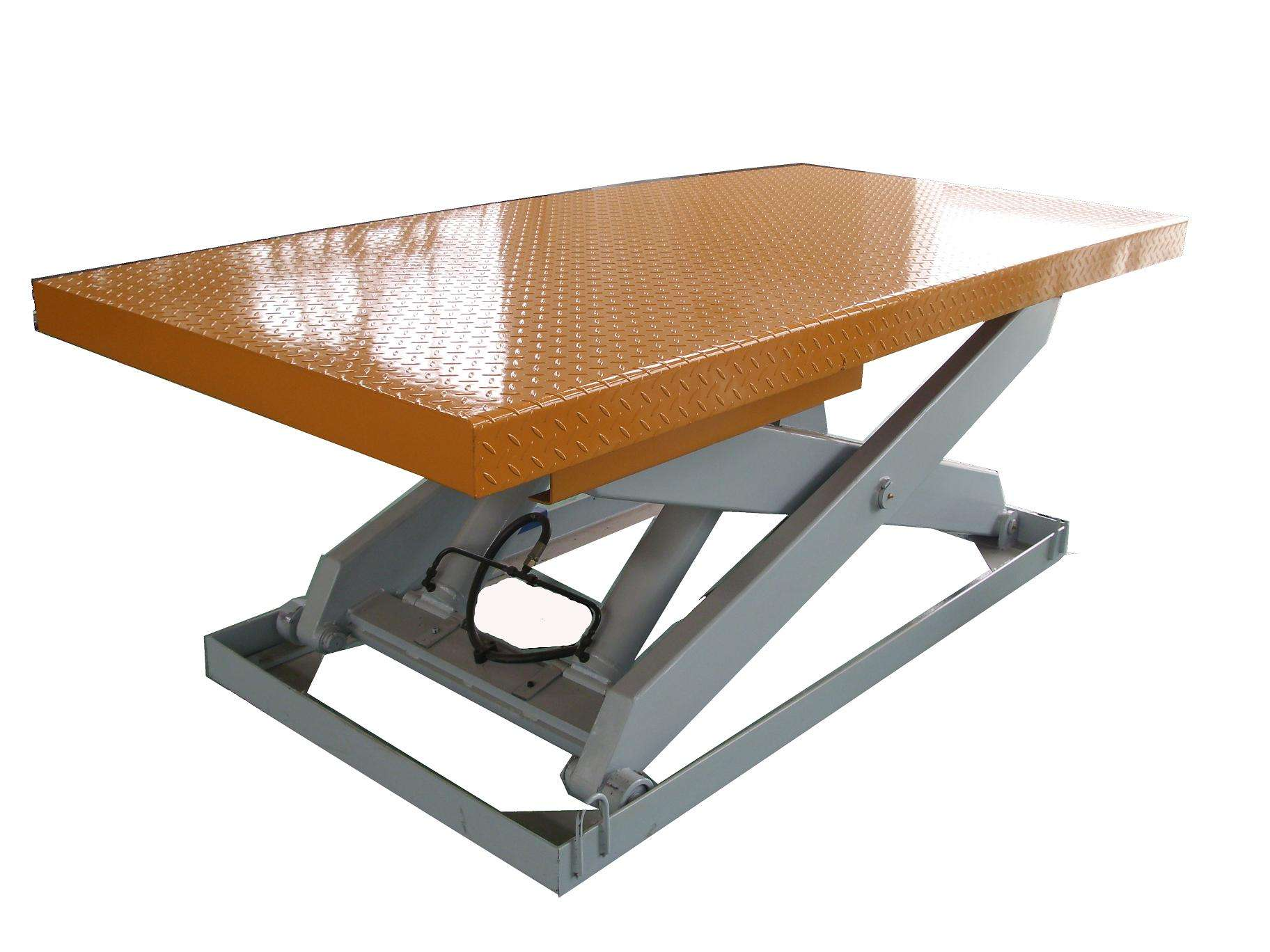

1 meter stationary scissor lift:
1 meter stationary scissor lift parameters:
Rated Loading Capacity: 500kg-40ton
Max. Lifting Height: 1000mm
Type: Electric hydraulic
Power supply: three-phase alternating current
Table size: specified by customer
1 meter scissor lift manufacturer：
Henan DFLIFT machinery co., LTD is a professional scissor lift supplier in China. We have CE, ISO certification, 1-year warranty for all our products, 24-hour online service, and lifelong technical guidance for equipment.
